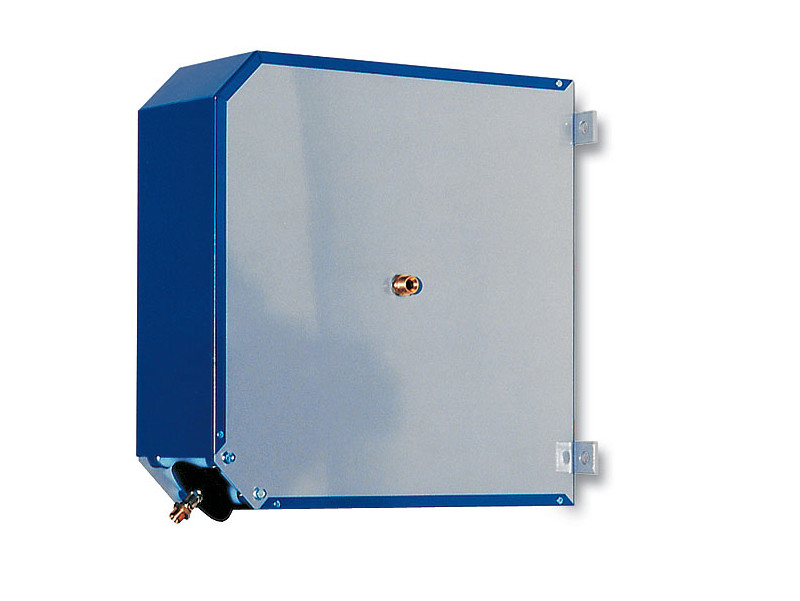

Slanghaspel BT 4086-A

Slanghaspel BT 4086-A

OMSCHRIJVING

Artikel code

BT4000

AFGEDICHT TYPE INCL. 8 M PERSLUCHTSLANG NW6

Categorie:

Slanghaspels

Specificaties

ArtNo.	BT 4086-A	BT 4126-A	BT 4206-A	BT 4089-A	BT 4129-A	BT 4209-A	BT 4106 SA/16	BT 4156 SA/15
Total weight	10.5 kg	12 kg	18.5 kg	12 kg	16.5 kg	21.5 kg	12 kg	19 kg
Hose length in m	8	12	20	8	12	20	10	15
Hose DN in mm	6	6	6	9	9	9	06-jun	06-jun
Dim A in mm	265	300	310	300	310	375	310	310
Dim B in mm	140	140	160	140	160	160	160	160
Dim C in mm	160	160	190	160	190	190	190	190
Dim D in mm	335	375	400	370	400	455	400	455
Dim E in mm	325	360	395	365	400	450	400	450
Dim F in mm	115	115	140	115	140	150	140	150
Dim G in mm	30	30	45	30	45	45	45	45
Dim G in mm (Diameter)	8.5	8.5	11	8.5	11	11	11	11
