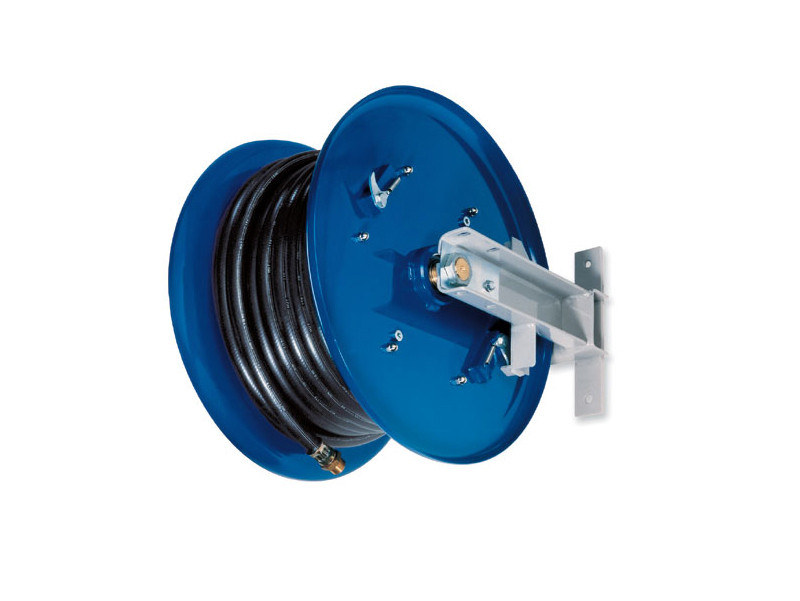

Slanghaspel BT 6.25.13

Slanghaspel BT 6.25.13

OMSCHRIJVING

Artikel code

BT6000

Categorie:

Slanghaspels

Specificaties

ArtNo.	BT 6.25.13	BT 6.40.13	BT 6.50.13	BT 6.20.19	BT 6.30.19	BT 6.40.19	BT 6.50.19	BT 6.20.25	BT 6.30.25	BT 6.40.25	BT 6.50.25	BT 6.10.32	BT 6.20.32	BT 6.30.32	BT 6.40.32	BT 6.10.38	BT 6.20.38
Total weight	42 kg	61 kg	63 kg	43 kg	50 kg	63 kg	65 kg	48 kg	70 kg	70 kg	70 kg	50 kg	72 kg	72 kg	73 kg	52 kg	70 kg
Hose length in m	25	40	50	20	30	40	50	20	30	40	50	10	20	30	40	10	20
Operating pressure in bar	30	30	30	30	30	-	30	30	30	30	30	30	30	30	30	30	30
Hose nominal width in mm	13	13	13	19	19	19	19	25	25	25	25	32	32	32	32	38	38
Hose nominal width in Zoll	1/2"	1/2"	1/2"	3/4"	3/4"	3/4"	3/4"	1"	1"	1"	1"	1 1/4"	1 1/4"	1 1/4"	1 1/4"	1 1/2"	1 1/2"
Dim A in mm	440	440	440	440	440	440	440	440	600	600	600	440	600	600	600	440	600
Dim B in mm	360	360	360	360	360	360	360	360	530	530	530	360	530	530	530	360	530
Dim C in mm	230	230	230	230	230	230	230	230	230	230	230	230	230	230	230	230	230
Dim F in mm	520	550	620	550	620	620	700	620	620	650	650	620	620	650	700	620	650
Dim G in mm	615	625	700	625	700	700	780	700	700	735	735	700	700	735	780	700	735
Dim G in mm (Diameter)	233	233	233	233	233	233	233	233	390	390	390	233	390	390	390	233	390
Dim I in mm	345	345	390	345	390	390	430	390	390	410	410	390	390	410	430	390	410
Dim E in Zoll	G 3/4"i	G 3/4"i	G 3/4"i	G 1"i	G 1"i	G 1"i	G 1"i	G 1"i	G1"i	G1"i	G 1"i	G 1 1/4"i	G 1 1/4"i	G 1 1/4"i	G 1 1/4"i	G 1 1/2"i	G 1 1/2"i
Dim D in Zoll	G 1/2"i	G 1/2"i	G 1/2"i	G 3/4"i	G 3/4"i	G 3/4"i	G 3/4"i	G 1"i	G1"i	G1"i	G 1"i	G 1 1/4"i	G 1 1/4"i	G 1 1/4"i	G 1 1/4"i	G 1 1/2"i	G 1 1/2"i
